Vertical TMR Mixer Innovations

Vertical TMR Mixer Innovations

Jaylor is well known for producing a high quality, durable feed mixer. Over the years we have designed and patented a number of exclusive features that build on our established reputation for durability and efficient operation.

Mix Viewing Window

Mix Viewing Window (Patented)

Built into the side of the drum, the Mix Viewing Window permits the operator to view the ration at eye level during the mixing process. The operator can easily and safely view the mix, while the auger is in operation.

Return to top
jaylor_mixer

Square Cut Auger (Patented)

With its unique sloped top and slide plate technology, Jaylor’s innovative and patented ‘Square cut’ auger produces a quality mix faster and cleaner. Its improved cutting action means less pressure on the mix and improved feed ration for your animals. Less friction results in reduced power consumption, which translates to lower operating costs for you.

Return to top
jaylor_mixer

Alexander and Vertical Knife (Patented)

Jaylor’s patented Alexander and Vertical Knives, made with Tungsten carbide coated steel, work in conjunction with our standard knives to: improve processing time, aid in eliminating bridging, and to cut through tough forages easily without bruising.

Return to top
jaylor_mixer

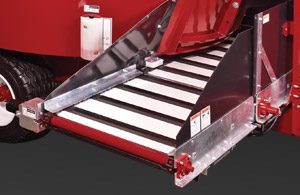

Discharge Conveyor (Patents Pending)

The discharge conveyor is fabricated from galvanized steel and HDP plastic to reduce acidic corrosion. The plastic floor and shields reduce noise and are UV and weather resistant. Several conveyor options are available: extensions, dual directions, and magnets.

Return to top
Engineered 5 Year Frame Warranty

Frame Warranty

Through innovative design and lightweight modular construction, our frames offer superior strength and durability. Ruggedly field-tested for reliability, the frames incorporate C channel rails for strength and rigidity. Jaylor offers a five year warranty against frame failure at no additional charge.

Return to top
jaylor_mixer

Dinamica Generale Scale System

All Jaylor models come equipped with a Dinamica Generale scale system. Calibrated in pounds or kilograms, the DG scale system is programmed to be compatible with your current feed system. The DG scale system helps determine ingredient quantities required to create precise recipes, and your desired ration.

Return to top
jaylor_mixer

Dinamica Generale Weigh Bars

All Jaylor mixers are equipped with three DG weigh bars, which are compatible with Weigh-Tronix and Digistar scale indicators.

Renowned for their reliability and accuracy, they’re constructed to withstand the rigorous demands of farm usage. To ensure their durability, DG Weigh Bars are constructed under regulated pressure-control, temperature, and humidity. Made from high quality alloy steel, the double sealed electronic strain gauge is sealed with a medically-developed sealing agent and industrial potting grade compound. Together they reinforce durability under hard agricultural usage. PTE sheathed cables provide maximum protection against moisture and heat, they’re guaranteed to operate in conditions ranging from -58 and +149 Fahrenheit. All models are traced, pre-calibrated and tested individually for complete accuracy. That’s why DG weigh bars come with a four year warranty, a guarantee that is unmatched in the industry.

Return to top
jaylor_mixer

Dinamica Generale Indicators-Software

DG Scale Indicators come in four models, all based on the unit STADO4 features.

As with most models, the Stad04 has large LED readouts that are clearly visible at a distance and have a simple navigation on the search menu. The readouts can be set for pounds or kilograms and are Complete with a Total/Partial and Net/Gross working mode, the internal alarm system informs you when the mixer is reaching its target weight. A block key feature allows you to freeze the displayed weight while driving your mixer. An overload control provides security for the machine. WINET wireless interface allows you connection with all your wireless accessories.

The Stad04 PLUS 2 has all the same Stad04 features. With the added features of: editing the name of components, unloading points, and loading programs. Set Programs by either the total weight of your herd or numbers of cows.

The WIN Scale2 offers DTM software capability and has a 22 language capability, and a mixer timer control at the end of each load to ensure optimum TMR. The Win Scale2 comes with 99 loading programs and 12 unloading programs.

The Top Scale offers all the features of the Stad/WIN models and is compatible with Feeding Management Software DTM. The Top Scale comes with 99 loading programs and 48 unloading programs. It is possible for the operator to adjust the recipe by a percentage of the total weight, by weight per cow, by total number of cows or by total weight. The real TMR weight can be set before unloading your ingredients, permitting an automatic redistribution of the weight for each pen in order to avoid waste.
