Horizontal Quad TMR Mixers

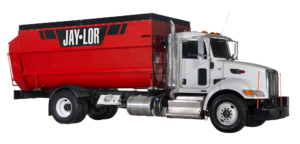

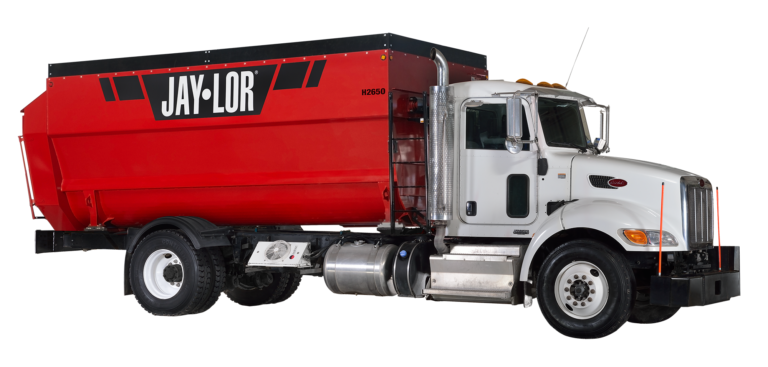

Jaylor H2650

Specifications

Capacity*: 700ft³ | 19.8m³*
Ration Capacity: 21500lbs | 9700kg
Overall Weight Without Truck: 15400lbs | 6990kg
Overall Height Without Truck: 92in | 234cm
Overall Length Without Truck: 232in | 590cm
Overall Width Without Truck: 102in | 260cm
Height On Typical Truck: 131in | 332cm
Length On Typical Truck: 364in | 925cm
Recommended Truck Engine: 260 HP
Variable Auger Speed: 4-26 RPM
Auger Drive System: Hydrostatic
Lower Auger Material: Stainless Steel
Lower Auger Thickness: 3/8in | 9.5mm
Upper Auger Material: Mild Steel
Upper Auger Thickness: 3/8in | 9.5mm
Discharge Height On Typical Truck: 51in | 130cm
Door Opening Width: 53in | 135cm
Floor Thickness: 1/4in | 6mm
Drum Wall Thickness: 1/4in | 6mm
Rear Axle Requirement: 32000lbs | 14500kg
Front Axle Requirement: 11000lbs | 5000kg

* Functional capacity noted with included standard extensions.

Warranty

Industry Leading

With a 700 ft³ (19.8 m³) capacity and 21,500 lb ration capacity, the H2650 Horizontal TMR Mixer combines Jaylor’s patented Ribbon Auger technology with a lightweight, high-capacity design to deliver fast, consistent mixes while maintaining feed integrity. Its ability to run at struck capacity, paired with OrbitEvo™ intelligent controls and precise single-pass feedout, helps producers reduce mixing time, improve feed consistency, and increase daily productivity.
