Horizontal Quad TMR Mixers

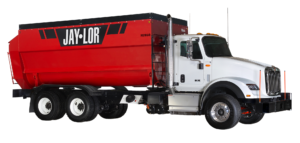

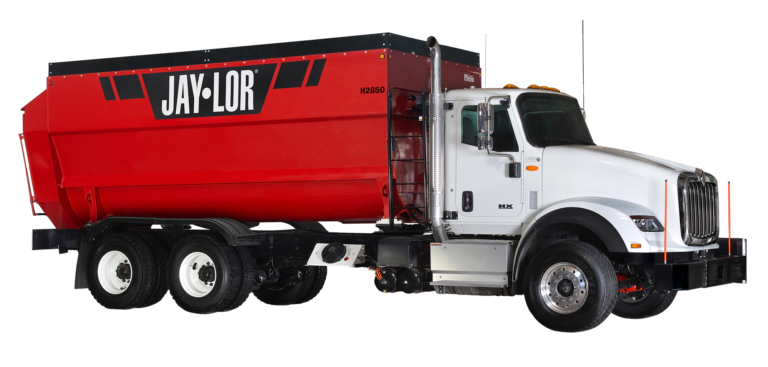

Jaylor H2850

Specifications

Capacity*: 850ft³ | 24.1m³*
Ration Capacity: 26000lbs | 11800kg
Overall Weight Without Truck: 18000lbs | 8160kg
Overall Height Without Truck: 98in | 249cm
Overall Length Without Truck: 256in | 650cm
Overall Width Without Truck: 102in | 259cm
Height On Typical Truck: 137in | 348cm
Length On Typical Truck: 388cm | 985cm
Recommended Truck Engine: 300 HP
Variable Auger Speed: 4-26 RPM
Auger Drive System: Hydrostatic
Lower Auger Material: Stainless Steel
Lower Auger Thickness: 3/8in | 9.5mm
Upper Auger Material: Mild Steel
Upper Auger Thickness: 3/8in | 9.5mm
Discharge Height On Typical Truck: 51in | 130cm
Door Opening Width: 53in | 135cm
Floor Thickness: 1/4in | 6mm
Drum Wall Thickness: 1/4in | 6mm
Rear Axle Requirement: 40000lbs | 18100kg
Front Axle Requirement: 12500lbs | 5700kg

* Functional capacity noted with included standard extensions.

Warranty

Industry Leading

Featuring an 850 ft³ (24.1 m³) capacity and 26,000 lb ration capacity, the H2850 Horizontal TMR Mixer utilizes Jaylor’s patented Ribbon Auger system to produce a uniform mix faster while eliminating feed compaction and reducing component strain. Combined with its lightweight construction, hydrostatic drive system, and OrbitEvo™ intelligent controls, the H2850 provides dependable performance, precise feed delivery, and exceptional throughput load after load.
