6000 Series Vertical - TMR Mixers

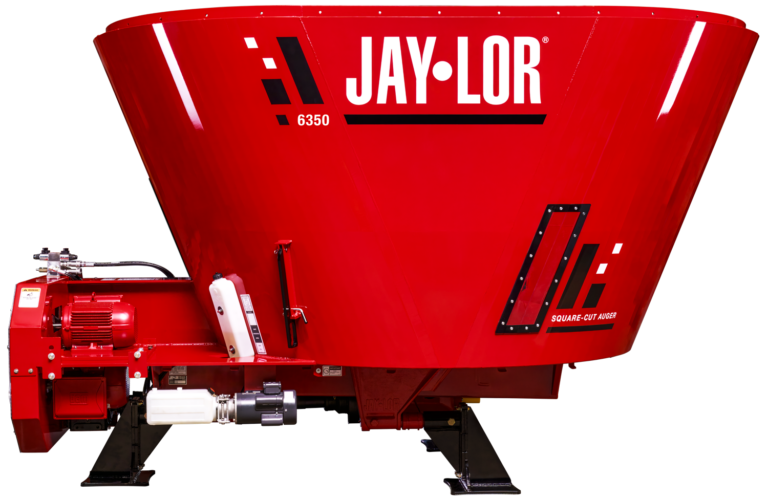

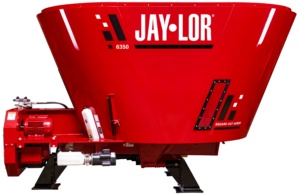

Jaylor 6350ST Stationary TMR Mixer

Specifications

Capacity No Extension: 350ft³ | 9.9m³*
Capacity 8" Extension: 380ft³ | 10.8m³
Capacity 12" Extension: 405ft³ | 11.5m³
Capacity 16" Extension: 425ft³ | 12.0m³
Bale Capacity 4X4 Round: 2
Bale Capacity 4X5 Round: 1
Bale Capacity 5X6 Round: Shear
Bale Capacity 3X3X8 Square: 1.5
Bale Capacity 3X4X8 Square: 1.1
Overall Height: 90in | 228cm
Overall Length: 155in | 394cm
Drum Width: 91in | 231cm
Pto Speed: 540 RPM
Minimum Hp: 2x 10HP Single Phase
Maximum Hp Option: 50HP 3-Phase
Auger Speed: 13-41 RPM
Number Of Knives: 9
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 115in | 292cm
Minimum Floor Height: 21in | 53cm
Maximum Floor Height: 52in | 132cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm

* *Functional capacity noted, bale capacity will vary with density of hay, extensions on mixer and other factors †With standard 12” extension ‡With optional; long conveyor & tallest tire §With included lower wall stainless

Warranty

Industry Leading

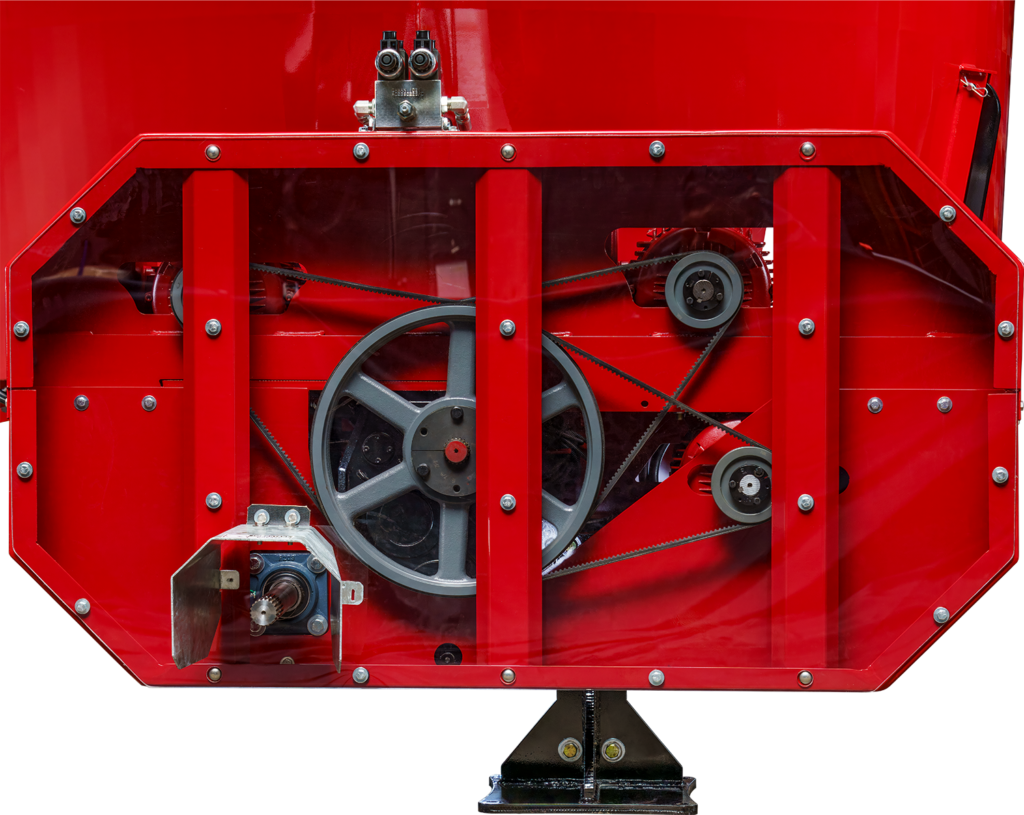

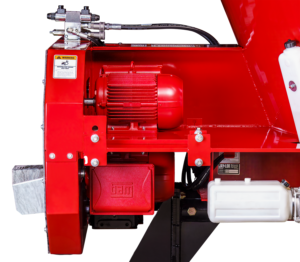

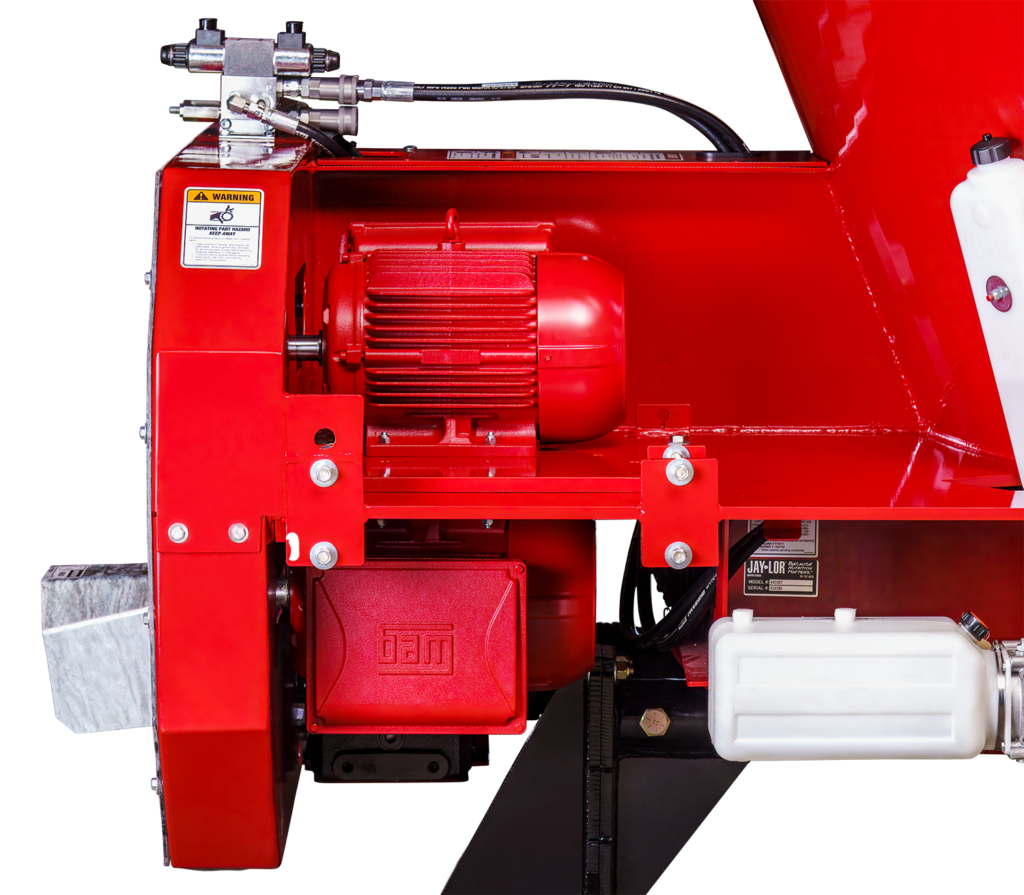

The Jaylor 6350ST is a highly configurable stationary TMR mixer with a functional capacity of 350 ft³, up to 425 ft³ with extensions. With 12 drivetrain configurations, 5 standard motor options and auger speeds from 13 to 41 RPM, the 6350ST can be matched to your electrical service, ration and feeding requirements while Jaylor’s patented Square-Cut Auger delivers a consistent True TMR load after load.

Choosing the right setup doesn’t have to be left to you. The Jaylor team works with you to understand your feeding requirements, your available space and power, and your discharge and conveyor needs, helping configure the 6350ST around your operation from the start and providing ongoing support for years to come.

Download the 6000 Stationary Brochure
