6000 Series Vertical - TMR Mixers

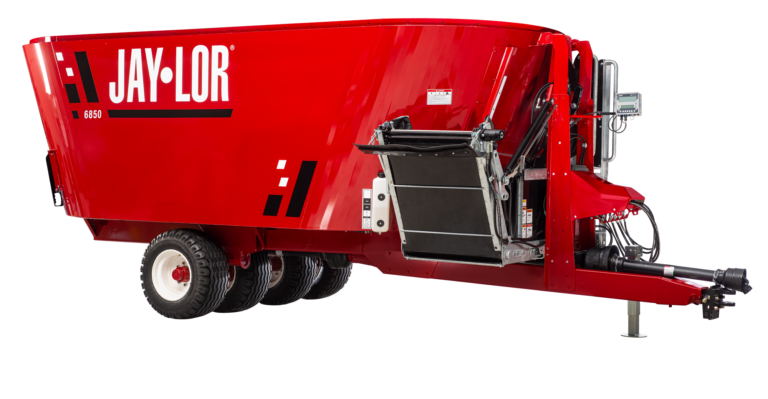

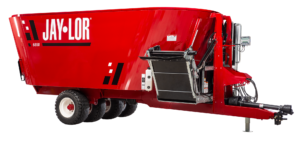

Jaylor 6850 Twin Auger TMR Mixer

Specifications

Capacity No Extension: 800ft³ | 22.7m³
Capacity 8" Extension: 865ft³ | 24.5m³
Capacity 12" Extension: 910ft³ | 25.8m³
Capacity 16" Extension: 960ft³ | 27.2m³
Bale Capacity 4X5 Round: 4
Bale Capacity 5X6 Round: 2
Bale Capacity 3X4X8 Square: 3.1
Height: 108in | 274cm
Length: 308in | 782cm
Drum Width: 97in | 246cm
Pto Speed: 1000 RPM
Minimum Hp: 125 HP
Auger Speed: 38 RPM
Number Of Knives: 18
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 73in | 185cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 15.0/55-17 26 PLY (4)
Wheel Assembly: Oscillating Axles

Warranty

Industry Leading

The Jaylor 6850 Twin Auger TMR Mixer is designed for operations that demand high capacity, dependable performance, and exceptional mix quality. Built around Jaylor’s patented twin Square-Cut Augers, the 6850 efficiently processes large volumes of forage while producing a consistent, uniform TMR that helps reduce sorting and feed waste.

Capable of handling up to two 5×6 round bales or four 4×5 round bales per load, the 6850 processes up to 3,840 lbs (1,740 kg) of hay equivalent with ease. Ideal for mid-to-large livestock operations, it can feed up to 160 dairy cows, 200 beef cattle, or 800 adult sheep/goats per load per day, depending on your ration. Combining impressive capacity with efficient operation, the 6850 is built to help keep larger feeding programs productive and consistent.
