6000 Series Vertical - TMR Mixers

Jaylor 6350 Single Auger TMR Mixer

Specifications

Capacity No Extension: 350ft³ | 9.9m³*
Capacity 8" Extension: 380ft³ | 10.8m³
Capacity 12" Extension: 405ft³ | 11.5m³
Capacity 16" Extension: 425ft³ | 12.0m³
Bale Capacity 4X4 Round: 2
Bale Capacity 4X5 Round: 1
Bale Capacity 5X6 Round: Shear
Bale Capacity 3X3X8 Square: 1.5
Bale Capacity 3X4X8 Square: 1.1
Height: 103in | 262cm
Length: 201in | 511cm
Drum Width: 91in | 231cm
Pto Speed: 540 RPM
Minimum Hp: 60 HP
Auger Speed: 41 RPM
Number Of Knives: 9
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 73in | 185cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 12.5L-15FI LR ‘F’ (2)
Wheel Assembly: Single Straight Axle

* *Functional capacity noted, bale capacity will vary with density of hay, extensions on mixer and other factors †With standard 12” extension ‡With optional; long conveyor & tallest tire §With included lower wall stainless

Warranty

Industry Leading

< Go back to 6000 Series Single Auger page

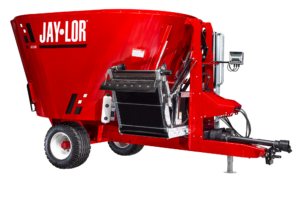

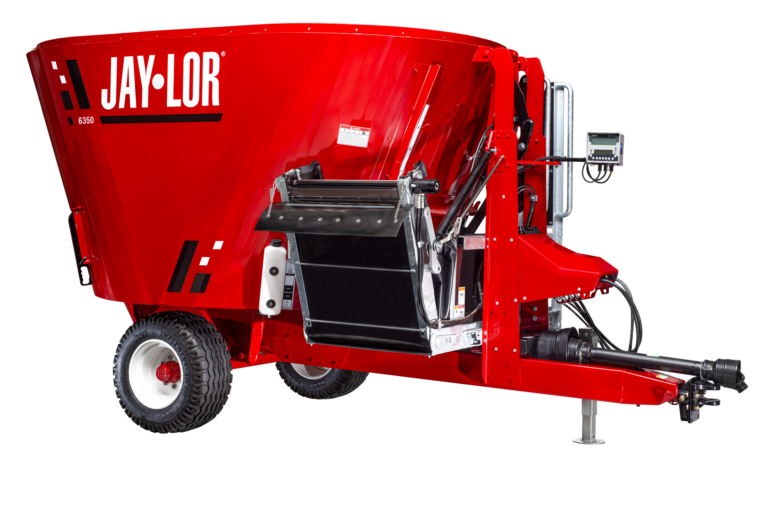

Whether you’re feeding baleage, Bermuda grass hay, corn stalks, or other forages, the Jaylor 6350 Single Auger TMR Mixer delivers consistent TMR performance with ease. Equipped with Jaylor’s patented Square-Cut Auger, this vertical feed mixer processes bales efficiently and creates a uniform mix that helps reduce sorting and feed waste.

Built for small to mid-sized operations, the 6350 handles one 4×5 bale or two 4×4 bales per load while maintaining the durability, reliability, and mixing performance Jaylor is known for. Designed to maximize efficiency without demanding excessive horsepower, the 6350 operates comfortably with a 60 HP tractor, helping you get more done with the equipment you already own.
