6000 Series Vertical - TMR Mixers

Jaylor 6850AT All-Terrain TMR Mixer

Specifications

Capacity No Extension: 800ft³ | 22.7m³
Capacity 8" Extension: 865ft³ | 24.5m³
Capacity 12" Extension: 910ft³ | 25.8m³
Capacity 16" Extension: 960ft³ | 27.2m³
Bale Capacity 4X4 Round: 6
Bale Capacity 4X5 Round: 4
Bale Capacity 5X6 Round: 2
Bale Capacity 3X3X8 Square: 4.2
Bale Capacity 3X4X8 Square: 3.1
Height: 122in | 310cm
Length: 308in | 782cm
Drum Width: 97in | 246cm
Pto Speed: 1000 RPM
Minimum Hp: 125 HP
Auger Speed: 38 RPM
Number Of Knives: 18
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 84in | 213cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm

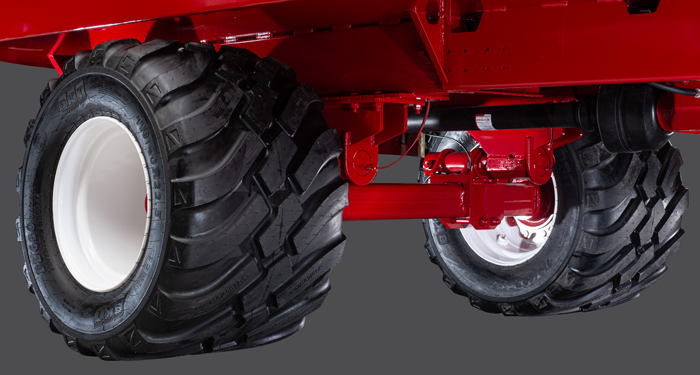

Standard Tires: 710/40R 22.5 FL630 (2)
Wheel Assembly: HD Single Straight Axle

Warranty

Industry Leading

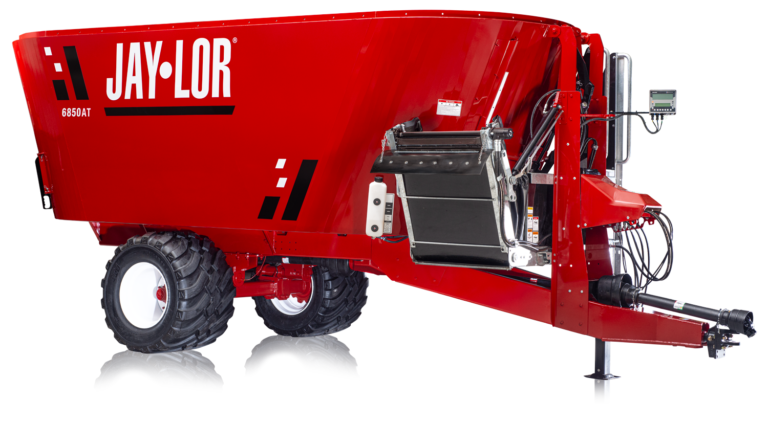

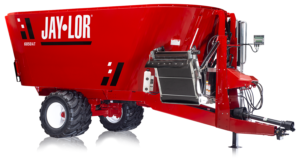

The Jaylor 6850AT All-Terrain TMR Mixer is built for producers who need high-capacity TMR feeding performance beyond the feed yard. Combining the capacity and mixing quality of the 6850 with a purpose-built all-terrain design, the 6850AT is equipped with massive flotation tires and increased ground clearance to confidently tackle mud, snow, rough pastures, and challenging feeding conditions.

Featuring Jaylor’s patented twin Square-Cut Augers, the 6850AT delivers a consistent, uniform TMR while efficiently processing large volumes of forage. With the capacity to handle demanding feeding programs and the mobility to reach cattle wherever they are, the 6850AT helps bring the benefits of TMR feeding, including improved feed utilization, reduced waste, and consistent nutrition, to more areas of your operation.
