Horizontal Quad TMR Mixers

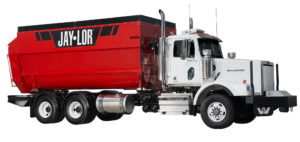

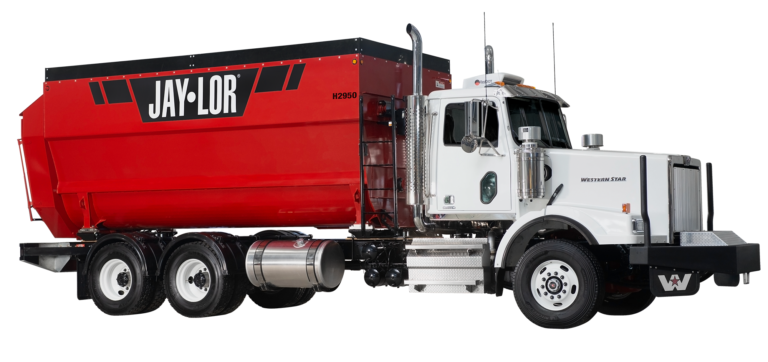

Jaylor H2950

Specifications

Capacity*: 950ft³ | 26.9m³*
Ration Capacity: 30000lbs | 13500kg
Overall Weight Without Truck: 17800lbs | 8070kg
Overall Height Without Truck: 103in | 262cm
Overall Length Without Truck: 256in | 650cm
Overall Width Without Truck: 108in | 274cm
Height On Typical Truck: 142in | 360cm
Length On Typical Truck: 388in | 986cm
Recommended Truck Engine: 360 HP
Variable Auger Speed: 4-26 RPM

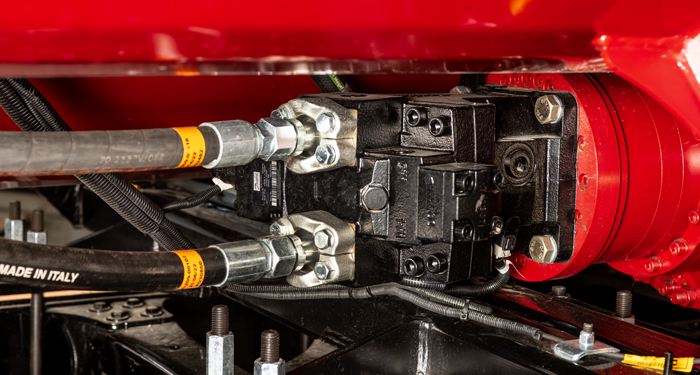

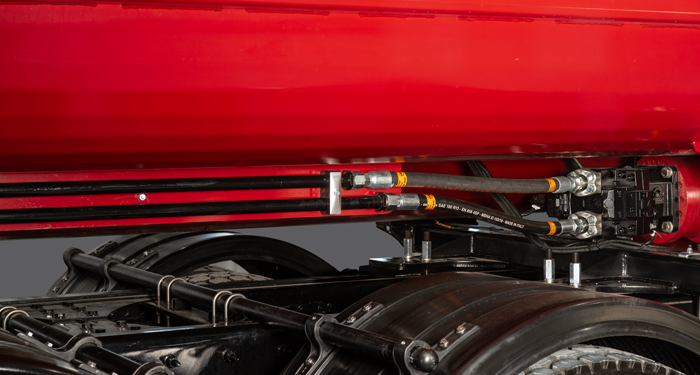

Auger Drive System: Hydrostatic
Lower Auger Material: Stainless Steel
Lower Auger Thickness: 3/8in | 9.5mm
Upper Auger Material: Mild Steel
Upper Auger Thickness: 3/8in | 9.5mm
Discharge Height On Typical Truck: 51in | 130cm

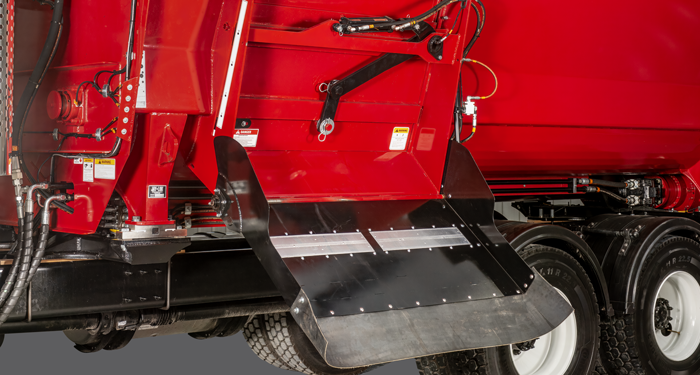

Door Opening Width: 53in | 135cm
Floor Thickness: 1/4in | 6mm
Drum Wall Thickness: 1/4in | 6mm
Rear Axle Requirement: 44000lbs | 20000kg
Front Axle Requirement: 14000lbs | 6400kg

* Functional capacity noted with included standard extensions.

Warranty

Industry Leading

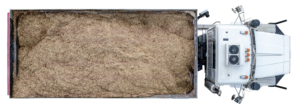

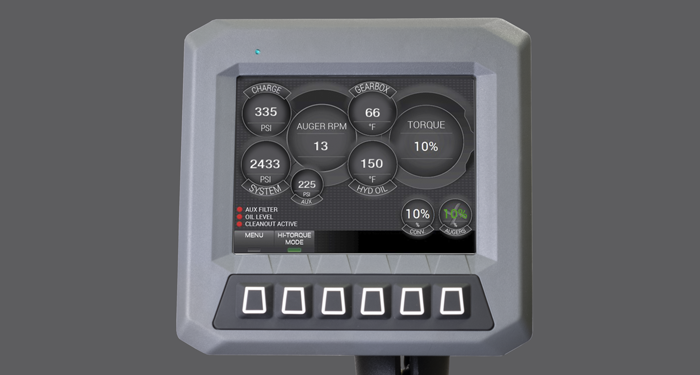

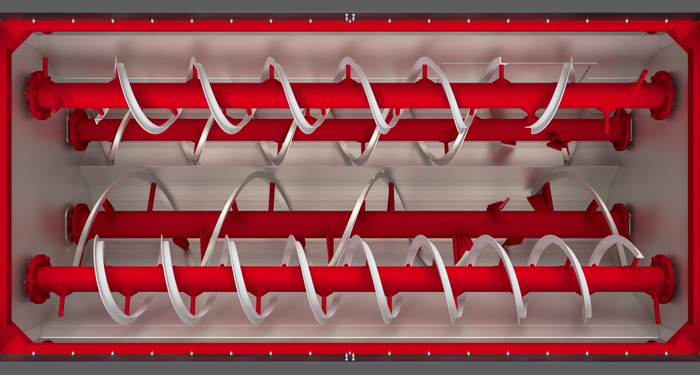

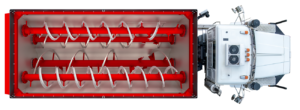

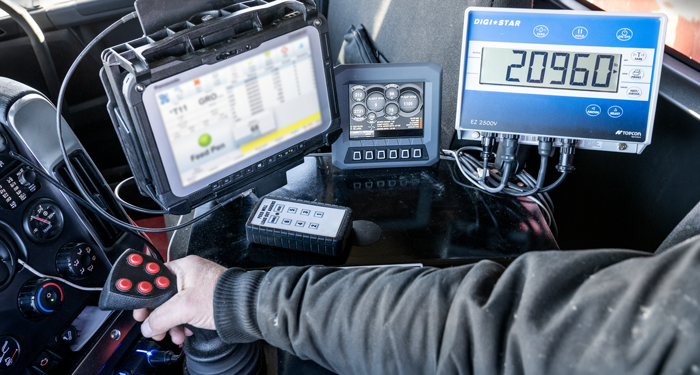

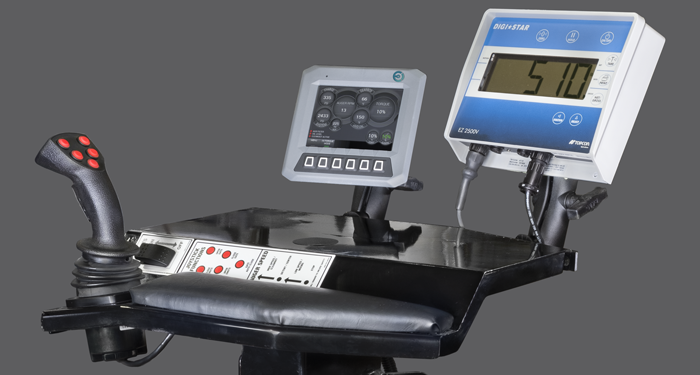

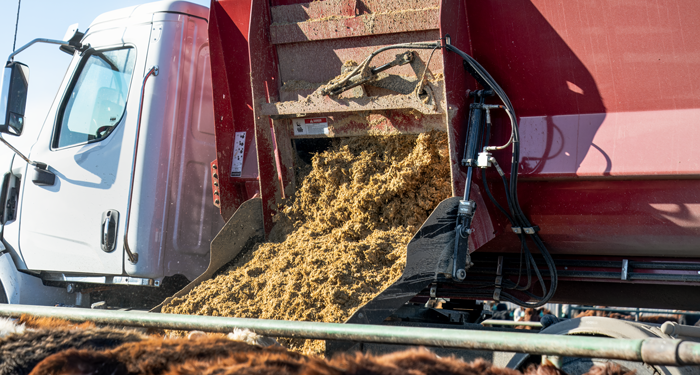

The H2950 is the largest model in the Jaylor 2000 Series Horizontal TMR Mixer line-up, engineered for large-scale feeding operations where maximum payload and productivity are essential. With a 950 ft³ (26.9 m³) capacity and 30,000 lb ration capacity, it is designed to operate at full struck capacity without compromising mix quality. Jaylor’s patented Ribbon Auger technology delivers fast, uniform mixing while preserving ration structure, and the lightweight mixer design maximizes usable payload. Paired with OrbitEvo™ intelligent controls and high-capacity feedout components, the H2950 helps operators move more feed, more efficiently, with consistent results every day.

Download the 2000 Series Brochure
