Jaylor 6425ST Stationary TMR Mixer

6000 Series Vertical - TMR Mixers

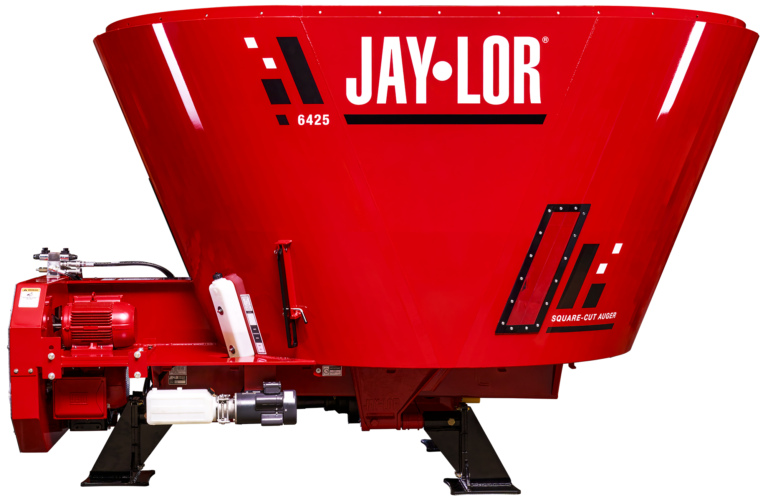

Jaylor 6425ST Stationary TMR Mixer

Specifications

Capacity No Extension
450ft³ | 12.7m³*
Capacity 8" Extension
485ft³ | 13.7m³*
Capacity 12" Extension
515ft³ | 14.6m³*
Capacity 16" Extension
540ft³ | 15.3m³*
Bale Capacity 4X4 Round
3
Bale Capacity 4X5 Round
2
Bale Capacity 5X6 Round
1
Bale Capacity 3X3X8 Square
2
Bale Capacity 3X4X8 Square
1.5
Overall Height
93in | 236cm****
Overall Length
166in | 422cm
Drum Width
97in | 246cm
Pto Speed
540 RPM
Minimum Hp
2x 10HP Single Phase
Maximum Hp Option
50HP 3-Phase
Auger Speed
13-41 RPM**
Number Of Knives
9
Auger Flighting Thickness
3/4in | 19mm
Max Discharge Height
116in | 294cm***
Minimum Floor Height
21in | 53cm*****
Maximum Floor Height
52in | 132cm******
Conveyor Width
36in | 91cm
Door Opening Width
40in | 102cm
Floor Thickness
5/8in | 16mm
Drum Wall Thickness
1/4in | 6mm
  • * Functional capacity noted, bale capacity will vary with adequate power for required RPM, density of hay, extensions on mixer drum and other factors
  • ** Dependent upon pulley, motor and VFD set-up ‡With 10’6” conveyor, tallest foot setting and foot extension
  • *** With 10’6” conveyor, tallest foot setting and foot extension
  • **** With lowest foot setting
  • ***** With lowest foot setting
  • ****** With tallest foot setting and foot extension

Warranty

Industry Leading

< Go back to 6000 Series Single Auger page

With 450 ft³ of standard capacity, up to 540 ft³ with extensions, the Jaylor 6425ST gives you substantial stationary mixing capacity with the flexibility to configure your mixer for your operation. Choose from 12 drivetrain configurations, 5 standard motor options and auger speeds ranging from 13 to 41 RPM, allowing the mixer to be matched to your electrical service, ration and daily feeding requirements without compromising the consistent True TMR performance of Jaylor’s patented Square-Cut Auger.

Jaylor takes a hands-on approach to getting that configuration right. Our team works with you to determine the right mixer setup, drivetrain, height, discharge and conveyor set-up for your operation, then continues to support you after installation to help keep your feeding system working the way it should.

Standard Features

Square Cut Auger with Sloped Top
12 Drivetrain Configurations
5 Motor Options
2-Speed Transmission
Adjustable Feet
Hydraulic Power Pack
Slide Plate Technology
Tungsten Carbide Coated Knives
50% Larger Viewing Window
Welded Mixing Chamber
DG500 Scale Indicator
Restrictor Blades
Shear Bolt Protection
View All

Optional Features

Tractor Backup Driveline
Alexander Knives
Vertical Knives
Angling Blade Auger
Plastic Extension Upgrade
Rear Door
Corner Door
Center Side Door

Scale Options

DG500 Scale Indicator
Digistar Remote Scale Display
Avery XL Scale Display
Bluetooth Remote Scale Display
Weight Repeater Extra Scale Display
Dina-Tel 3 Display Kit
Software For Mixer & Feeding Management
