6000 Series Vertical - TMR Mixers

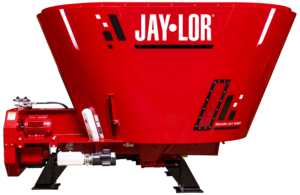

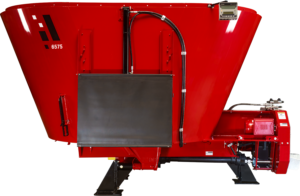

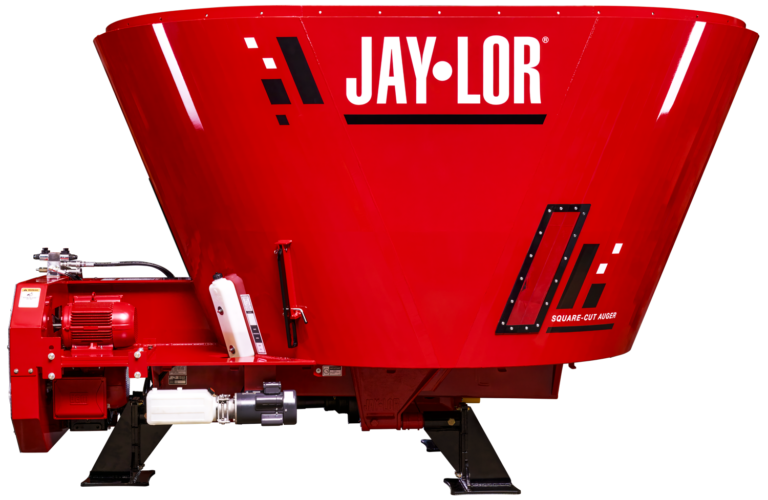

Jaylor 6575ST Stationary TMR Mixer

Specifications

Capacity No Extension: 475ft³ | 13.5m³*
Capacity 8" Extension: 515ft³ | 14.6m³*
Capacity 12" Extension: 545ft³ | 15.4m³*
Capacity 16" Extension: 575ft³ | 16.3m³*
Bale Capacity 4X4 Round: 3
Bale Capacity 4X5 Round: 2
Bale Capacity 5X6 Round: 1
Bale Capacity 3X3X8 Square: 2.1
Bale Capacity 3X4X8 Square: 1.6
Overall Height: 94in | 239cm****
Overall Length: 169in | 429cm
Drum Width: 102in | 259cm

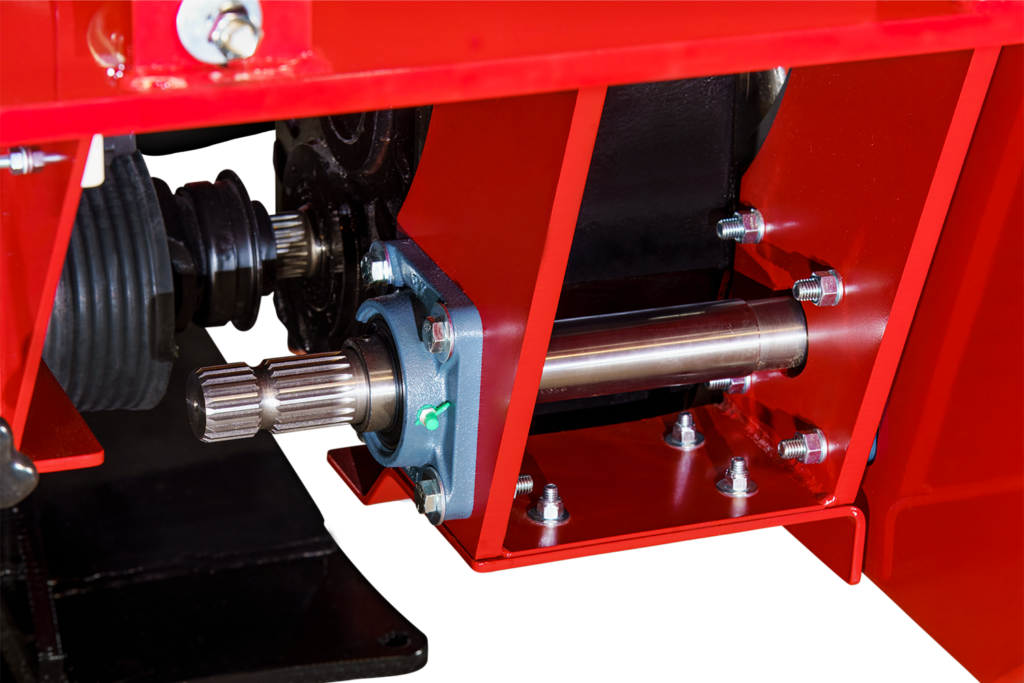

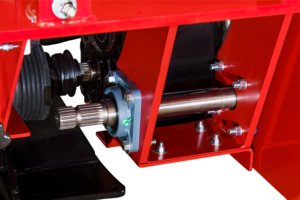

Pto Speed: 540 RPM
Minimum Hp: 50HP 3-Phase
Maximum Hp Option: 50HP 3-Phase
Auger Speed: 28-41 RPM**
Number Of Knives: 11
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 116in | 294cm***

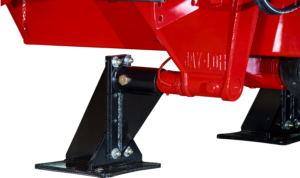

Minimum Floor Height: 21in | 53cm*****
Maximum Floor Height: 52in | 132cm******
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm

* Functional capacity noted, bale capacity will vary with adequate power for required RPM, density of hay, extensions on mixer drum and other factors

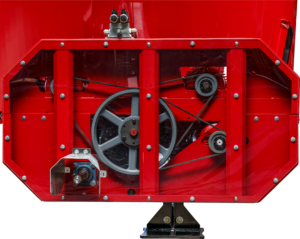

** Dependent upon pulley, motor and VFD set-up
*** With 11’ conveyor, tallest foot setting and foot extension

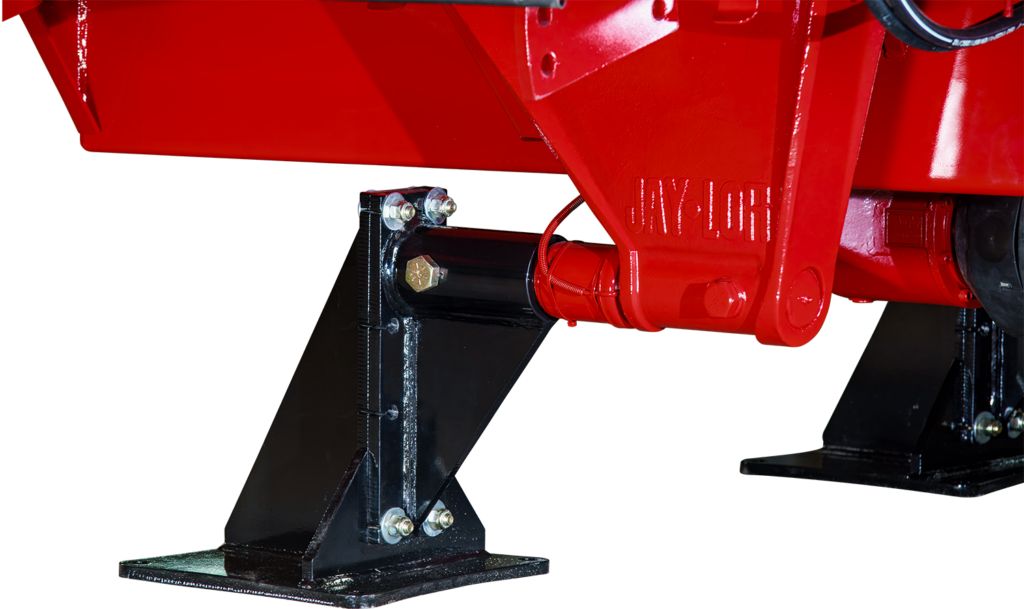

**** With lowest foot setting
***** With lowest foot setting
****** With tallest foot setting and foot extension

Warranty

Industry Leading

The Jaylor 6575ST delivers 475ft³ of standard capacity, up to 575ft³ with extensions, for operations that need significant stationary mixing capacity from a single auger mixer. The 6575ST can be configured around your ration, electrical service and feeding requirements, backed by one of the best warranties in the industry and Jaylor’s patented Square-Cut Auger for true and consistent mixing performance.

From selecting the right configurations, mixer height, discharge and conveyor setup, the Jaylor team works directly with you to get the details right before installation. That same team remains available afterward for questions, service and ongoing support, so you can get the most from your 6575ST for years to come.

Download the 6000 Stationary Brochure
