6000 Series Vertical - TMR Mixers

Jaylor 6425AT All-Terrain TMR Mixer

Specifications

Capacity No Extension: 450ft³ | 12.7m³
Capacity 8" Extension: 485ft³ | 13.7m³
Capacity 12" Extension: 515ft³ | 14.6m³
Capacity 16" Extension: 540ft³ | 15.3m³
Bale Capacity 4X4 Round: 3
Bale Capacity 4X5 Round: 2
Bale Capacity 5X6 Round: 1
Bale Capacity 3X3X8 Square: 2
Bale Capacity 3X4X8 Square: 1.5
Height: 117in | 298cm
Length: 212in | 538cm
Drum Width: 97in | 246cm
Pto Speed: 540 RPM
Minimum Hp: 70 HP
Auger Speed: 41 RPM
Number Of Knives: 9
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 79in | 201cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 560/45R 22.5 FL630 (2)
Wheel Assembly: HD Single Straight Axle

Warranty

Industry Leading

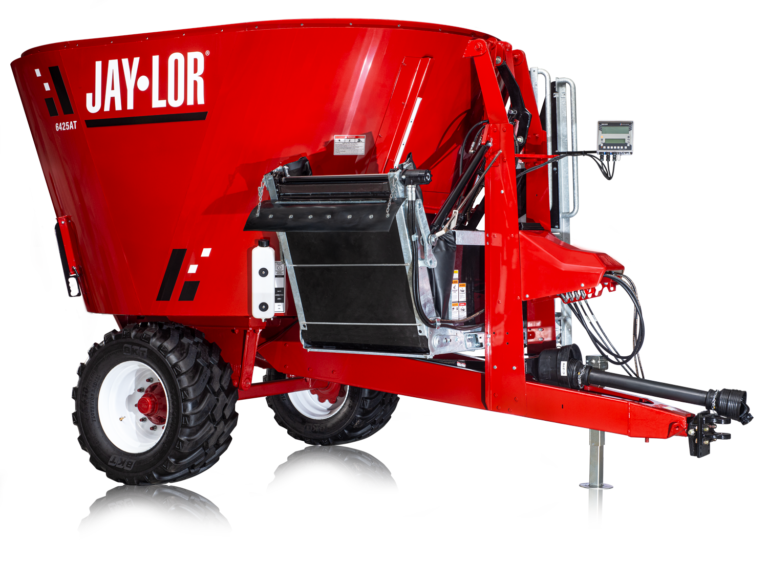

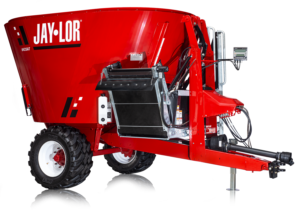

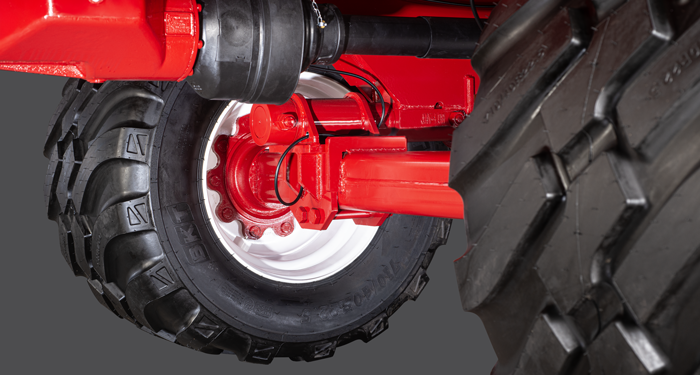

The Jaylor 6425AT All-Terrain TMR Mixer combines the proven performance of the 6425 with the ability to feed where traditional mixers can’t. Designed for operations that feed in pastures, muddy lots, snow-covered yards, or challenging terrain, the 6425AT features massive flotation tires and increased ground clearance to keep you moving in difficult conditions.

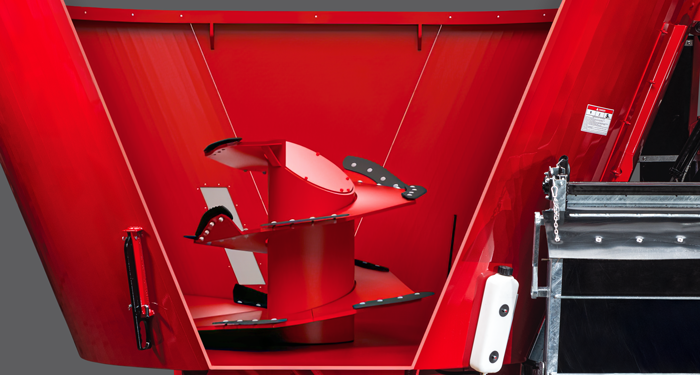

Powered by Jaylor’s patented Square-Cut Auger, the 6425AT efficiently processes bales, silage, and ration ingredients into a consistent, uniform TMR that helps reduce sorting and feed waste. Whether you’re feeding cow-calf pairs on pasture or navigating rough feeding conditions, the 6425AT brings the benefits of a high-quality TMR directly to your cattle, helping support herd performance while reducing feed loss.
