6000 Series Vertical - TMR Mixers

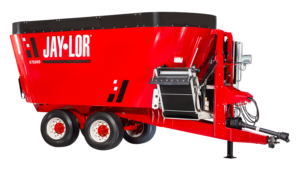

Jaylor 6750HD Twin Auger TMR Mixer

Specifications

Capacity 12" Extension: 740ft³ | 21.0m³
Capacity 16" Extension: 780ft³ | 22.1m³
Weight: 15500lbs | 7000kg
Height: 120in | 305cm
Length: 290in | 737cm
Drum Width: 91in | 231cm
Pto Speed: 1000 RPM
Minimum Hp: 125 HP
Auger Speed: 38 RPM
Number Of Knives: 18
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 66in | 168cm*
Conveyor Width: 36in | 91cm
Door Opening Width: 42in | 107cm
Floor Thickness: 3/4in | 19mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 435/50R19.5 (4)
Wheel Assembly: Walking Beam

* with optional 72" conveyor

Warranty

Industry Leading

The Jaylor 5750HD Twin Auger TMR Mixer is built to tackle the heaviest loads and toughest terrains. This heavy-duty feed mixer combines a reinforced undercarriage with the popular 5750 model size, creating a rugged, high-performance machine designed for demanding conditions. With multiple tire options, the 5750HD Mixer is built for versatility—there’s no ration or terrain it can’t handle. It processes up to two 5×6 or three 4×5 round bales per load, carrying 3,550 lbs (1,610 kg) of hay equivalent. Designed for mid-to-large operations, it can feed up to 150 dairy cattle, 185 beef cows, or 740 adult sheep/goats per load daily, depending on your ration composition.
