6000 Series Vertical - TMR Mixers

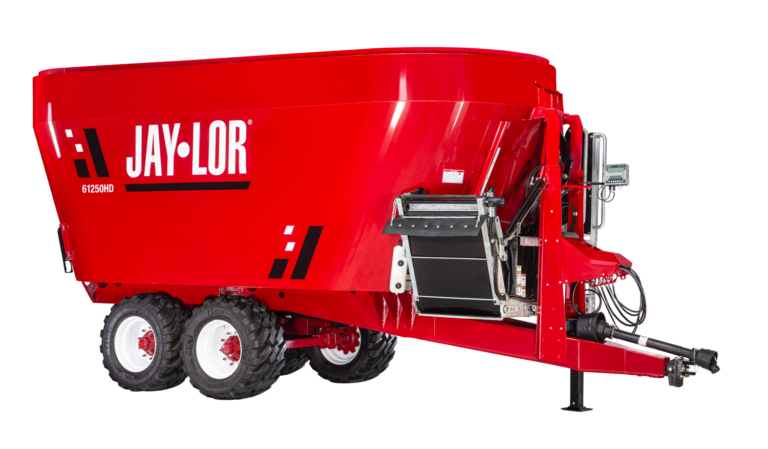

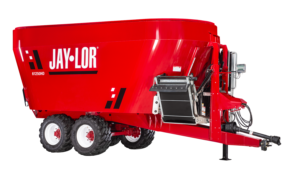

Jaylor 61250HD Twin Auger TMR Mixer

Specifications

Capacity No Extension: 1125ft³ | 31.9m³
Capacity 8" Extension: 1190ft³ | 33.7m³
Capacity 12" Extension: 1245ft³ | 35.3m³
Capacity 16" Extension: 1295ft³ | 36.7m³
Bale Capacity 4X5 Round: 5
Bale Capacity 5X6 Round: 3
Bale Capacity 3X4X8 Square: 4.4
Height: 138in | 350cm
Length: 318in | 808cm
Drum Width: 102in | 259cm
Pto Speed: 1000 RPM
Minimum Hp: 200 HP
Auger Speed: 41 RPM
Number Of Knives: 26
Auger Flighting Thickness: 3/4in | 19mm
Max Discharge Height: 81in | 206cm
Conveyor Width: 36in | 91cm
Door Opening Width: 40in | 102cm
Floor Thickness: 3/4in | 19mm
Drum Wall Thickness: 0.36in | 9mm
Standard Tires: 560/45R 22.5 FL630 (4)
Wheel Assembly: Walking Beam

Warranty

Industry Leading

The Jaylor 61250HD Twin Auger TMR Mixer is the largest model in the 6000 Series lineup, purpose-built for large-scale dairy, beef, and commercial feeding operations. With over 1,000 cubic feet (32 m³) of capacity, the 61250HD is engineered to handle high-volume feeding programs and heavy feedlot rations while maintaining the consistent, uniform TMR mix that supports herd performance.

Built for strength and stability, the 61250HD features a rugged walking tandem suspension with dual tires, along with available hydraulic or pneumatic brakes for confident transport and operation. Powered by Jaylor’s patented twin Square-Cut Augers, it delivers efficient forage processing, excellent mix quality, and dependable performance in the most demanding feeding environments. When maximum capacity and durability are required, the 61250HD is built to get the job done.
