QUAD AUGER

QUAD AUGER

H1650 Quad Auger Mixer
H1850 Quad Auger Mixer
H1950 Auger Mixer
Capacity650ft3 | 18.4m3850ft3 | 24.1m3950ft³ | 26.9m³
Ration Capacity19500lbs | 8850kg24500lbs | 11100kg28000lbs | 12700kg
Box Weight16000lbs | 7250kg19500lbs | 8850kg22000lbs | 10000kg
Box Height76in | 193cm82in | 208cm88in | 224cm
Box Length209in | 531cm233in | 592cm233in | 592cm
Box Width94in | 239cm94in | 239cm102in | 259cm
Overall Height On Typical Truck121in | 307cm127in | 323cm133in | 338cm
Overall Length On Typical Truck299in | 760cm320in | 813cm320in | 813cm
Overall Width On Typical Truck102in | 259cm102in | 259cm102in | 259cm
Recommended Truck Engine260 HP300 HP360 HP
Variable Auger Speed4-26 RPM4-26 RPM4-26 RPM
Auger Drive SystemHydrostaticHydrostaticHydrostatic
Number Of Optional Knives363636
Top Auger Thickness1/2in | 12.7mm1/2in | 12.7mm1/2in | 12.7mm
Lower Auger Thickness5/8in | 16mm5/8in | 16mm5/8in | 16mm
Discharge Height On Typical Truck52in | 132cm52in | 132cm52in | 132cm
Door Opening Width48in | 122cm48in | 122cm48in | 122cm
Floor Thickness1/4in | 6mm1/4in | 6mm1/4in | 6mm
Drum Wall Thickness1/4in | 6mm1/4in | 6mm1/4in | 6mm
Rear Axle Requirement32000lbs | 14500kg40000lbs | 18100kg44000lbs | 20000kg
Front Axle Requirement11000lbs | 5000kg12500lbs | 5700kg14000lbs | 6400kg
View DetailsView DetailsView Details
above tabs

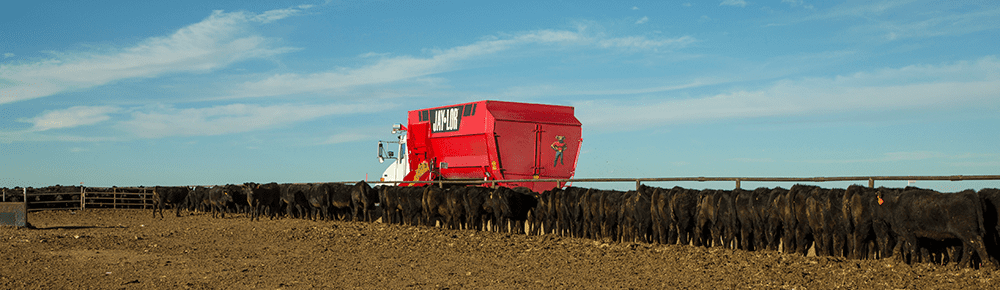

Jaylor’s horizontal quad-auger TMR mixers are designed and built by cattlemen for cattlemen. Our years of experience with feedlot rations guarantee you the perfect mixer for your needs every time. Our Models H1650, H1850 and H1950 provide you with the right capacity and speed. All models are designed and built with the same rugged construction, delivering extreme strength without excess weight. Our modern components provide finger-touch control to assure power and performance that deliver feed accurately, and efficiently. With the best warranty and customer service in the industry, your choice will long be rewarded.

  • Quad 4-Auger
  • Hydrostatic Pump
  • Hydrostatic Planetary Drive
  • Single Joystick Control
  • Hydraulic Reservoir
  • Mixer Body
  • Oil Resistant Door Seals
  • Gravity Discharge Chute
  • High Capacity Door
  • Central Grease Ports
  • Adjustable Chute Control
  • Remote Scale Display — LED Lights
  • OrbitEVO Intelligent Controller
  • Oil Bath Auger Drive
