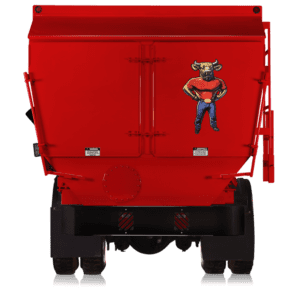

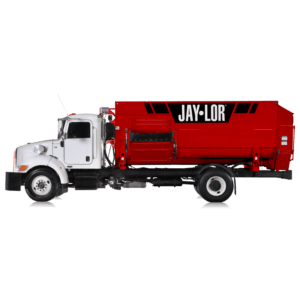

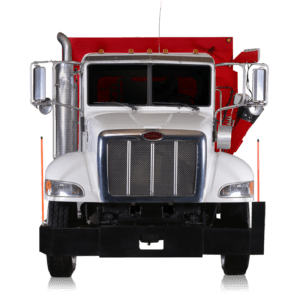

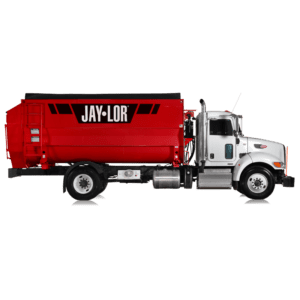

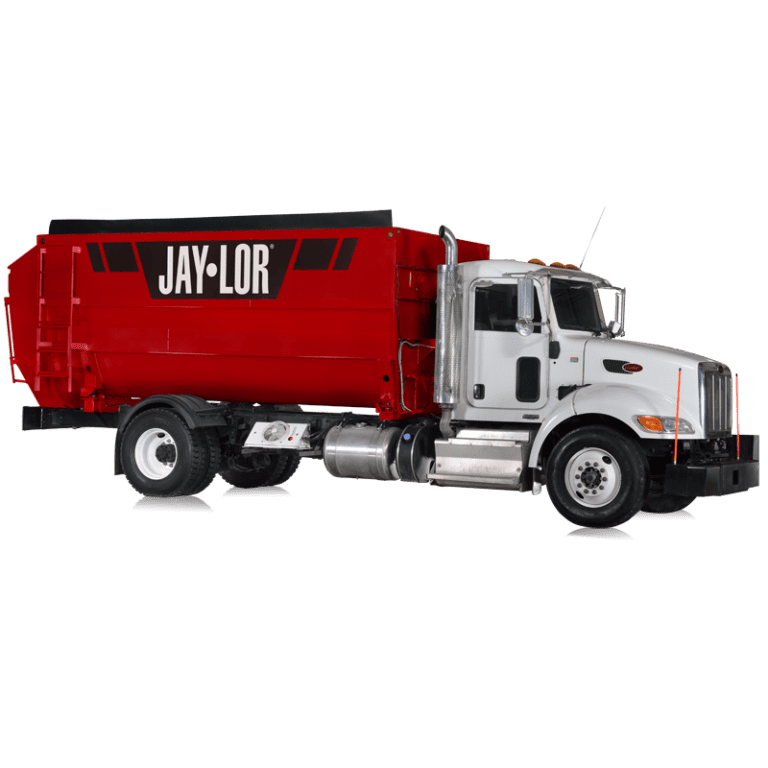

H1650 Auger Mixer

H1650 Auger Mixer

Specifications

Capacity
650ft³ | 18.4m³
Ration Capacity
19500lbs | 8850kg
Box Weight
16000lbs | 7250kg
Box Height
76in | 193cm
Box Length
209in | 531cm
Box Width
94in | 239cm
Overall Height On Typical Truck
121in | 307cm
Overall Length On Typical Truck
299in | 760cm
Overall Width On Typical Truck
102in | 259cm
Recommended Truck Engine
260 HP
Variable Auger Speed
4-26 RPM
Auger Drive System
Hydrostatic
Number Of Optional Knives
36
Top Auger Thickness
1/2in | 12.7mm
Lower Auger Thickness
5/8in | 16mm
Discharge Height On Typical Truck
52in | 132cm
Door Opening Width
48in | 122cm
Floor Thickness
1/4in | 6mm
Drum Wall Thickness
1/4in | 6mm
Rear Axle Requirement
32000lbs | 14500kg
Front Axle Requirement
11000lbs | 5000kg

Warranty

Industry Leading

Jaylor’s Horizontal Quad Auger TMR Mixers are designed by cattlemen for cattlemen. The H1650 is ideal for large Farms or small Feedlots preferring a single axle truck. Optional Ribbon Augers help to increase capacity 10-20% (by weight) while decreasing the HP requirements and fuel consumption (reduced mix times and fuel savings up to 1 Gal/hour). This, along with our OrbitEvo intelligent controller will allow you to finish feeding sooner without compromising the health of your cattle.

Standard Features

Mix by Auger Design
Hydrostatic Pump
Hydrostatic Planetary Drive
Single Joystick Control
Hydraulic Reservoir
Heavy Duty Construction
Oil-resistant Door Seals
Gravity Discharge Chute
High Capacity Door
Central Grease Ports
Adjustable Chute Control
Remote Display & LED Lights
Smart Control System
Oil Bath Auger Drive
View All

Features

Planetary Drive System
OrbitEvo 6520 Intelligent Controller
Digital Display Console
Advanced Joystick Control
Heavy Duty Construction
Simple Gravity Discharge Chute with Magnet
Durable 30,000lbs Load Cells
Auger Drive Oil Bath with Access Doors
Rear Bumper with Lights
Heavy Duty Chain Tensioners
Durable Hydrostatic Pump with Flange
View All
