6000 Series Vertical - TMR Mixers

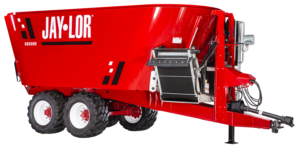

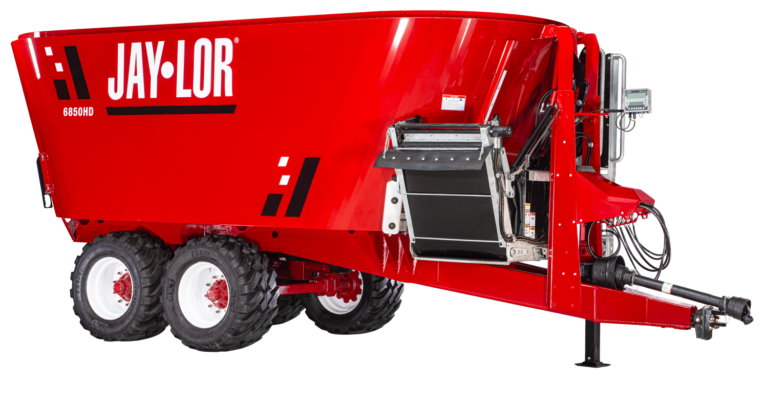

Jaylor 6850HD Twin Auger TMR Mixer
Specifications
- Capacity No Extension
- 800ft³ | 22.7m³
- Capacity 8" Extension
- 865ft³ | 24.5m³
- Capacity 12" Extension
- 910ft³ | 25.8m³
- Capacity 16" Extension
- 960ft³ | 27.2m³
- Weight
- 17600lbs | 8000kg
- Height
- 116in | 295cm
- Length
- 308in | 782cm
- Drum Width
- 97in | 246cm
- Pto Speed
- 1000 RPM
- Minimum Hp
- 135 HP
- Auger Speed
- 38 RPM
- Number Of Knives
- 18
- Auger Flighting Thickness
- 3/4in | 19mm
- Max Discharge Height
- 68in | 173cm*
- Conveyor Width
- 36in | 91cm
- Door Opening Width
- 42in | 107cm
- Floor Thickness
- 3/4in | 19mm
- Drum Wall Thickness
- 1/4in | 6mm
- Standard Tires
- 445/50R22.5 (4)
- Wheel Assembly
- Walking Beam
- * with optional 72" conveyor
Warranty
Industry Leading
The Jaylor 5850HD Twin Auger TMR Mixer is built tough for commercial feeding operations, engineered to withstand the rigors of all-day use with proven durability. Designed for large-scale operations, it processes up to two 5×6 or four 4×5 round bales per load, handling 3,840 lbs (1,740 kg) of hay equivalent with ease. With the capacity to feed up to 160 dairy cattle, 200 beef cows, or 800 adult sheep/goats per load daily, the 5850HD Mixer delivers consistent, high-quality TMR to maximize efficiency and herd performance.
Standard Features
Square Cut Auger with Sloped Top
Slide Plate Technology
Tungsten Carbide Coated Knives
Welded Mixing Chamber
Shaker Box
Mixer Level
Mix Viewing Window
2 Restrictor Blades
Rapid Discharge Door
Galvanized Discharge Conveyor
Heavy Duty Hubs
Heavy Duty Walking Beam Axle
Ladder and Platform
5 Point Weigh System
Heavy Duty Hydraulic Jack
Easy View Oil Reservoir
Shear Bolt Protection
Central Greasing Bank
View All
Optional Features
New Seal-Lock™ Door
Angling Blade Auger
Alexander Knives
Vertical Knives
Hay Ring
Plastic Extension Upgrade
Rear Door
Corner Door
Center Side Door
3′ Conveyor
Door Chute
Discharge Conveyor, Left or Right
Dual Discharge Flat Conveyor
Flip-Up Conveyor
8’ 6” Telescopic Conveyor
Discharge Magnet
Rubber Flap
Dual Conveyor Boot
Fenders
Hydraulic Brakes
Pneumatic Brake
Road Light
Battery Mount
Safety Chains
#8 Constant Velocity PTO
2 Speed Transmission
Remote Transmission Shifter
STAD 04 PLUS² Indicator Upgrade
WIN SCALE² Indicator Upgrade
TOP SCALE IC Indicator Upgrade
Cab Remote Display
Weight Repeater Remote Display
Alphanumeric Remote Display
Dina-Tel 2 for Full display
Wi-Net Modem
P2P Major Functions Remote
Mixer Control by Office PC
Software For Mixer & Feeding Management
Motor Controller Automate Mixer Operation
View All
Features
Sloped top Square-Cut Auger
5-Point Weigh system with DG500 Indicator
Heavy Duty Axles, Hubs and Bearings
Planetary Gearbox
Heavy Duty Adjustable Cast Hitch
Central Greasing Bank
Shaker Box to Optimize Your Mix
Mix Viewing Window
Rapid Discharge Door with Self-Cleaning Tracks
Heavy Duty Hydraulic Jack
×
Square Cut Auger with Sloped Top
Square Cut Auger with Sloped Top
×
Slide Plate Technology
Slide Plate Technology
×
Tungsten Carbide Coated Knives
Tungsten Carbide Coated Knives
×
Welded Mixing Chamber
Welded Mixing Chamber
×
Shaker Box
Shaker Box
×
Mixer Level
Mixer Level
×
Mix Viewing Window
Mix Viewing Window
×
2 Restrictor Blades
2 Restrictor Blades
×
Rapid Discharge Door
Rapid Discharge Door
×
Galvanized Discharge Conveyor
Galvanized Discharge Conveyor with Quiet, Wear-Resistant Plastic Floor
×
Heavy Duty Hubs
Heavy Duty Hubs
×

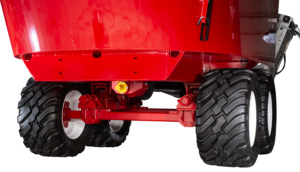

Heavy Duty Walking Beam Axle
Heavy Duty Walking Beam Axles
×
Ladder and Platform
Ladder and Platform
×
5 Point Weigh System
5 Point Weigh System
×
Heavy Duty Hydraulic Jack
Heavy Duty Hydraulic Jack
×
Easy View Oil Reservoir
Easy View Oil Reservoir
×
Shear Bolt Protection
Shear Bolt Protection
×
Central Greasing Bank
Central Greasing Bank
×
New Seal-Lock™ Door
New Seal-Lock Door: The new door system is a game-changer for efficient feed flow during the TMR process. Specifically engineered to ensure feed is unrestricted, maintaining consistent performance throughout the mixing cycle.
×
Angling Blade Auger
Angling Blade Auger
×
Alexander Knives
Alexander Knives
×
Vertical Knives
Vertical Knives
×
Hay Ring
Hay Ring
×
Plastic Extension Upgrade
Plastic Extension Upgrade
×
Rear Door
Rear Door
×
Corner Door
Corner Door
×
Center Side Door
Center Side Door
×
3′ Conveyor
3' Conveyor
×
Door Chute
Door Chute
×
Discharge Conveyor, Left or Right
Discharge Conveyor, Left or Right
×
Dual Discharge Flat Conveyor
Dual Discharge Flat Conveyor
×
Flip-Up Conveyor
Flip-Up Conveyor - 41”, 60” or 72”
×
8’ 6” Telescopic Conveyor
8’ 6” Telescopic Conveyor
×
Discharge Magnet
Discharge Magnet
×
Rubber Flap
Rubber Flap
×
Dual Conveyor Boot
Dual Conveyor Boot
×
Fenders
Fenders
×
Hydraulic Brakes
Hydraulic Brakes
×
Pneumatic Brake
Pneumatic Brake
×
Road Light
Road Light
×
Battery Mount
Battery Mount
×
Safety Chains
Safety Chains
×
#8 Constant Velocity PTO
#8 Constant Velocity PTO
×
2 Speed Transmission
2 Speed Transmission
×
Remote Transmission Shifter
Remote Transmission Shifter
×
STAD 04 PLUS² Indicator Upgrade
STAD 04 PLUS² Indicator Upgrade
×
WIN SCALE² Indicator Upgrade
WIN SCALE² Indicator Upgrade
×
TOP SCALE IC Indicator Upgrade
TOP SCALE IC Indicator Upgrade
×
Cab Remote Display
Cab Remote Display
×
Weight Repeater Remote Display
Weight Repeater Remote Display
×
Alphanumeric Remote Display
Alphanumeric Remote Display
×
Dina-Tel 2 for Full display
Dina-Tel 2 for Full display
×
Wi-Net Modem
Wi-Net Modem
×
P2P Major Functions Remote
P2P Major Functions Remote
×
Mixer Control by Office PC
Mixer Control by Office PC
×
Software For Mixer & Feeding Management
Software For Mixer & Feeding Management
×
Motor Controller Automate Mixer Operation
Motor Controller Automate Mixer Operation
