5750HD TMR Twin Auger
5850HD TMR Twin Auger
51000HD TMR Twin Auger
51250HD TMR Twin Auger
Capacity No ExtensionN/A800ft³ | 22.7m³925ft³ | 26.2m³1125ft³ | 31.9m³
Capacity 8" ExtensionN/A865ft³ | 24.5m³990ft³ | 28.0m³1190ft³ | 33.7m³
Capacity 12" Extension740ft³ | 21.0m³910ft³ | 25.8m³1045ft³ | 29.6m³1245ft³ | 35.3m³
Capacity 16" Extension780ft³ | 22.1m³960ft³ | 27.2m³1095ft³ | 31.0m³1295ft³ | 36.7m³
Weight15500lbs | 7000kg17600lbs | 8000kg19800lbs | 9000kg23100lbs | 10500kg
Height120in | 305cm116in | 295cm117in | 297cm135in | 343cm
Length290in | 737cm308in | 782cm318in | 808cm318in | 808cm
Drum Width91in | 231cm97in | 246cm102in | 259cm102in | 259cm
Pto Speed1000 RPM1000 RPM1000 RPM1000 RPM
Minimum Hp125 HP135 HP155 HP200 HP
Auger Speed38 RPM38 RPM38 RPM41 RPM
Number Of Knives18182226
Auger Flighting Thickness3/4in | 19mm3/4in | 19mm3/4in | 19mm3/4in | 19mm
Max Discharge Height66in | 168cm68in | 173cm68in | 173cm68in | 173cm
Conveyor Width36in | 91cm36in | 91cm36in | 91cm36in | 91cm
Door Opening Width42in | 107cm42in | 107cm42in | 107cm42in | 107cm
Floor Thickness3/4in | 19mm3/4in | 19mm3/4in | 19mm3/4in | 19mm
Drum Wall Thickness1/4in | 6mm1/4in | 6mm1/4in | 6mm1/4in | 6mm
Standard Tires435/50R19.5 (4)445/50R22.5 (4)275/70R22.5 (8)275/70R22.5 (8)
Wheel AssemblyWalking BeamWalking BeamWalking BeamWalking Beam
View DetailsView DetailsView DetailsView Details
above tabs

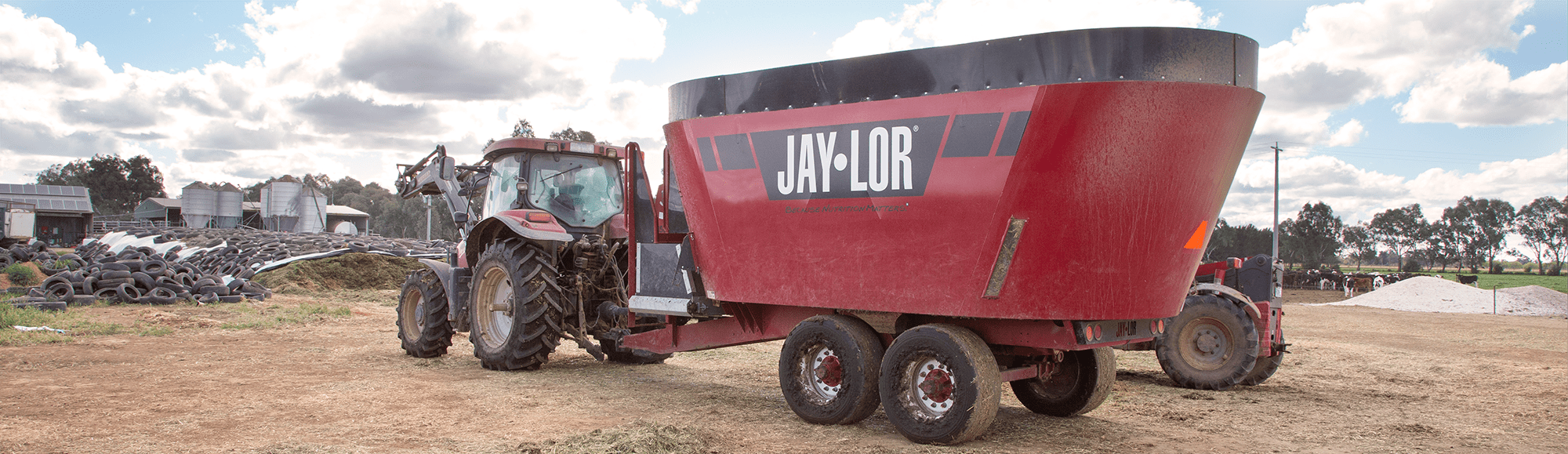

Jaylor’s high-capacity, HD TMR mixers are designed for heavier loads and rougher terrain, compared to our standard 5000 Series, Twin Auger Mixers. They are available in a full range of configurations, spanning from 740 to 1295 cubic feet (ft3). The HD TMR mixers have a heavier frame and sub-structure, along with cast dual-axle walking beam undercarriage with extra heavy-duty axles, hubs, tires and wheels. They also come with thicker auger flighting and floors.

Together, these enhancements make Jaylor HD mixers capable of blending and transporting rations that are up to 75% heavier; ideal for large dairies and beef operations. All of our HD series mixers are industry leaders at efficiently processing round or square baled forage. In as little as 3 to 5 minutes, operators will achieve a uniform ration that is resistant to a cattle’s natural habit of sorting.

All of Jaylor’s HD mixers come standard with a patented 3/4″ thick square-cut auger and a full range of innovations, warranties.

Contact your local dealer to discuss Jaylor’s extensive list of options to create your tailored feeding solution.

  • 5 Point Weight System
  • Rapid Discharge Door
  • Galvanized Discharge Conveyor
  • Sloped Top Square Cut Augers
  • Tungsten Carbide Coated Knives
  • Welded Mixing Chamber
  • Structurally Reinforced Frame
  • Shear Bolt Protection
  • Mixer Level Indicator
  • Heavy-Duty Walking Beam Axles & Hubs
  • Mix Viewing Window
  • Restrictor Blades (2)
  • Adjustable Cast Hitch
  • Heavy Duty Planetary Gearbox
  • Patented Open Loop Oil Reservoir
  • Central Greasing Bank
  • Shaker Box

Our Jaylor 5850 Mixer is the fifth Jaylor Mixer we’ve owned. We like to keep current with the latest technology, and the consistent mix and feed from the machine keep us coming back. Choosing anything else would be a step backward for us. – Armstrong Manor Farm

Jaylor-Piet Heger

Having a 13,000 head feedlot means we throw a lot at our Jaylor mixer. We use french fries in our feed, and the Jaylor 51250HD TMR Mixer gives us the best consistency of mix and vehicle maneuverability. – Kasko Cattle Co Ltd.
