6000 Series Vertical - TMR Mixers

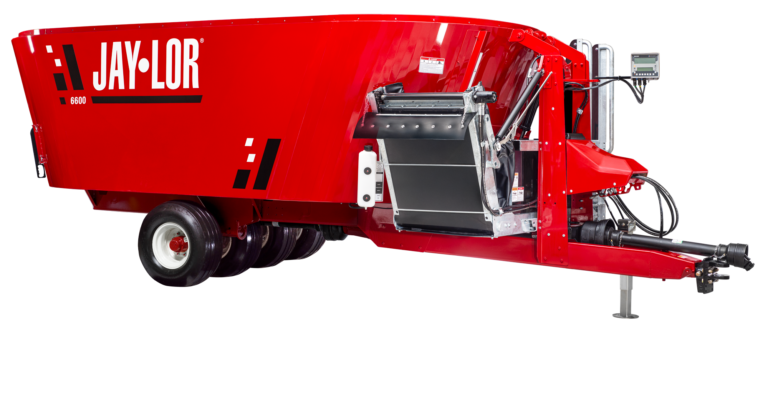

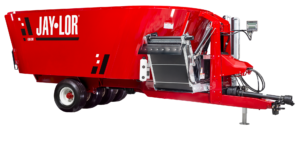

Jaylor 6600 Twin Auger TMR Mixer

Specifications

Capacity No Extension: 615ft3 | 17.4m3³
Capacity 8" Extension: 675ft³ | 19.1m³
Capacity 12" Extension: 720ft³ | 20.4m³
Capacity 16" Extension: 765ft³ | 21.7m³
Weight: 12900lbs | 5900kg
Height: 93in | 236cm*
Length: 303in | 770cm
Drum Width: 97in | 246cm
Pto Speed: 540 RPM
Minimum Hp: 105 HP
Auger Speed: 41 RPM
Number Of Knives: 16
Auger Flighting Thickness: 5/8in | 16mm
Max Discharge Height: 60in | 152cm**
Conveyor Width: 36in | 91cm
Door Opening Width: 42in | 107cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm

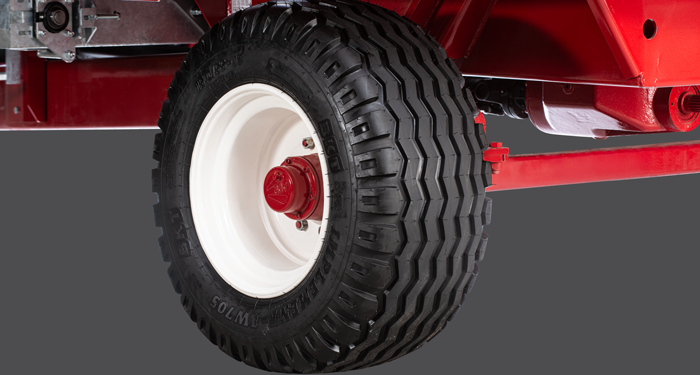

Standard Tires: 12.5L-15FI LR ‘F’ (4)

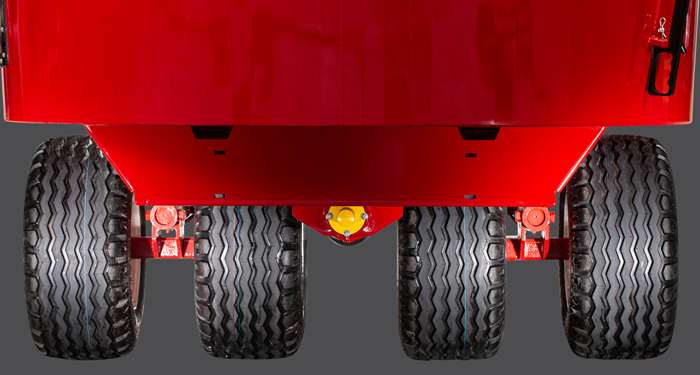

Wheel Assembly: Dual Oscillating

* with optional low-profile tires
** with optional 72" conveyor

Warranty

Industry Leading

The Jaylor 5600 Twin Auger TMR Mixer is our low-profile feed mixer, built for operations with height restrictions. Standing just 93 inches (236 cm) tall, it’s designed for easy loading with skid steers and fits seamlessly into barns with limited clearance. Equipped with Jaylor’s patented Square-Cut Auger, the 5600 Mixer delivers a consistent, uniform Total Mixed Ration (TMR) that resists sorting, ensuring better feed efficiency and improved livestock health.

Looking for a low profile single auger feed mixer? Check out the 5400 Single Auger Mixer.
