6000 Series Vertical - TMR Mixers

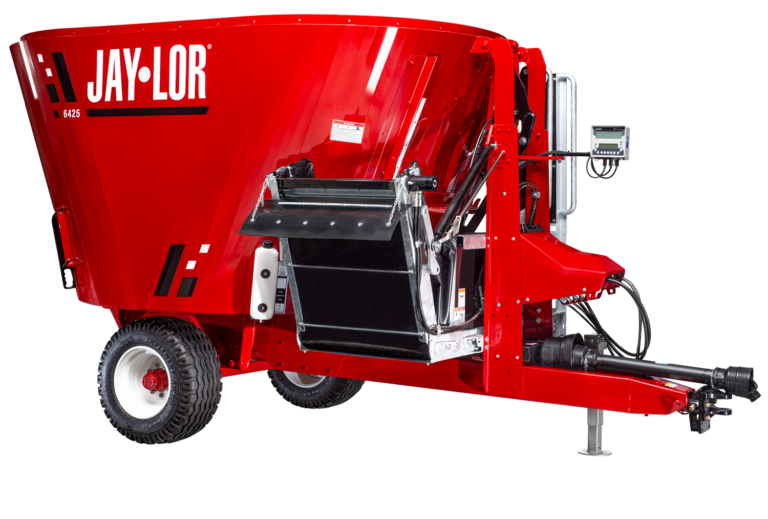

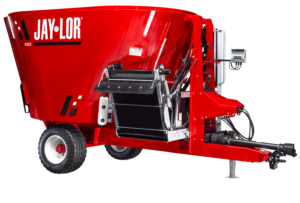

Jaylor 6425 Single Auger TMR Mixer
Specifications
- Capacity No Extension
- 450ft³ | 12.7m³
- Capacity 8" Extension
- 485ft³ | 13.7m³
- Capacity 12" Extension
- 515ft³ | 14.6m³
- Capacity 16" Extension
- 540ft³ | 15.3m³
- Weight
- 7500lbs | 3400kg
- Height
- 108in | 274cm
- Length
- 212in | 538cm
- Drum Width
- 97in | 246cm
- Pto Speed
- 540 RPM
- Minimum Hp
- 70 HP
- Auger Speed
- 41 RPM
- Number Of Knives
- 9
- Auger Flighting Thickness
- 5/8in | 16mm
- Max Discharge Height
- 60in | 152cm*
- Conveyor Width
- 36in | 91cm
- Door Opening Width
- 42in | 107cm
- Floor Thickness
- 5/8in | 16mm
- Drum Wall Thickness
- 1/4in | 6mm
- Standard Tires
- 15.0/55-17 26 PLY (2)
- Wheel Assembly
- Single Straight Axle
- * with optional 72" conveyor
Warranty
Industry Leading
The Jaylor 5425 Single Auger TMR Mixer is our most popular vertical feed mixer—and for good reason. Designed for dairy, cow-calf, backgrounding, and mid-sized grower operations worldwide, it delivers consistent, high-quality TMR to help maximize productivity and herd performance. Built with Jaylor’s patented innovations, the 5425 Mixer efficiently processes bales, silage, and rations with uniform mixing and minimal sorting or waste. Plus, with customizable options, it’s designed to fit the unique needs of your operation.
Standard Features
Square Cut Auger with Sloped Top
Slide Plate Technology
Tungsten Carbide Coated Knives
Welded Mixing Chamber
Shaker Box
Mixer Level
Mix Viewing Window
2 Restrictor Blades
Reinforced Frame
Rapid Discharge Door
Galvanized Discharge Conveyor
Heavy Duty Adjustable Cast Hitch
Heavy Duty Hubs
Heavy Duty Single Straight Axle
Ladder and Platform
3 Point Weigh System
Planetary Gearbox
Easy View Oil Reservoir
Shear Bolt Protection
View All
Optional Features
New Seal-Lock™ Door
Angling Blade Auger
Alexander Knives
Vertical Knives
Hay Ring
Plastic Extension Upgrade
Rear Door
Corner Door
Center Side Door
Drop Floor
3′ Conveyor
Door Chute
Discharge Conveyor, Left or Right
Dual Discharge Flat Conveyor
Flip-Up Conveyor
Discharge Magnet
Rubber Flap
Dual Conveyor Boot
HD axle with Dual Tires 245/70R19.5
Fenders
Road Light
Battery Mount
Safety Chains
#8 Constant Velocity PTO
2 Speed Transmission
Remote Transmission Shifter
STAD 04 PLUS² Indicator Upgrade
WIN SCALE² Indicator Upgrade
TOP SCALE IC Indicator Upgrade
Cab Remote Display
Weight Repeater Remote Display
Alphanumeric Remote Display
Dina-Tel 2 for Full display
Wi-Net Modem
P2P Major Functions Remote
Mixer Control by Office PC
Software For Mixer & Feeding Management
Motor Controller Automate Mixer Operation
View All
Features
Sloped top Square-Cut Auger
3-Point Weigh System with DG500 Indicator
Rapid Discharge Door with Self-Cleaning Tracks
Galvanized Conveyor for Longevity
Structurally Reinforced Frame
Mix Viewing Window
Included Shaker Box and Scale
Mixer Level Indicator
Heavy Duty Adjustable Cast Hitch
×
Square Cut Auger with Sloped Top
Square Cut Auger with Sloped Top
×
Slide Plate Technology
Slide Plate Technology
×
Tungsten Carbide Coated Knives
Tungsten Carbide Coated Knives
×
Welded Mixing Chamber
Welded Mixing Chamber
×
Shaker Box
Shaker Box
×
Mixer Level
Mixer Level
×
Mix Viewing Window
Mix Viewing Window
×
2 Restrictor Blades
2 Restrictor Blades
×
Reinforced Frame
Engineered, Structurally Reinforced Frame with Strain Relief Plate
×
Rapid Discharge Door
Rapid Discharge Door
×
Galvanized Discharge Conveyor
Galvanized Discharge Conveyor with Quiet, Wear-Resistant Plastic Floor
×
Heavy Duty Adjustable Cast Hitch
Heavy Duty Adjustable Cast Hitch
×
Heavy Duty Hubs
Heavy Duty Hubs
×
Heavy Duty Single Straight Axle
Heavy Duty Single Straight Axle
×
Ladder and Platform
Ladder and Platform
×
3 Point Weigh System
3 Point Weigh System
×
Planetary Gearbox
Planetary Gearbox
×
Easy View Oil Reservoir
Easy View Oil Reservoir
×
Shear Bolt Protection
Shear Bolt Protection
×
New Seal-Lock™ Door
New Seal-Lock Door: The new door system is a game-changer for efficient feed flow during the TMR process. Specifically engineered to ensure feed is unrestricted, maintaining consistent performance throughout the mixing cycle.
×
Angling Blade Auger
Angling Blade Auger
×
Alexander Knives
Alexander Knives
×
Vertical Knives
Vertical Knives
×
Hay Ring
Hay Ring
×
Plastic Extension Upgrade
Plastic Extension Upgrade
×
Rear Door
Rear Door
×
Corner Door
Corner Door
×
Center Side Door
Center Side Door
×
Drop Floor
Drop Floor
×
3′ Conveyor
3' Conveyor
×
Door Chute
Door Chute
×
Discharge Conveyor, Left or Right
Discharge Conveyor, Left or Right
×
Dual Discharge Flat Conveyor
Dual Discharge Flat Conveyor
×
Flip-Up Conveyor
Flip-Up Conveyor - 41”, 60” or 72”
×
Discharge Magnet
Discharge Magnet
×
Rubber Flap
Rubber Flap
×
Dual Conveyor Boot
Dual Conveyor Boot
×
HD axle with Dual Tires 245/70R19.5
HD axle with Dual Tires 245/70R19.5
×
Fenders
Fenders
×
Road Light
Road Light
×
Battery Mount
Battery Mount
×
Safety Chains
Safety Chains
×
#8 Constant Velocity PTO
#8 Constant Velocity PTO
×
2 Speed Transmission
2 Speed Transmission
×
Remote Transmission Shifter
Remote Transmission Shifter
×
STAD 04 PLUS² Indicator Upgrade
STAD 04 PLUS² Indicator Upgrade
×
WIN SCALE² Indicator Upgrade
WIN SCALE² Indicator Upgrade
×
TOP SCALE IC Indicator Upgrade
TOP SCALE IC Indicator Upgrade
×
Cab Remote Display
Cab Remote Display
×
Weight Repeater Remote Display
Weight Repeater Remote Display
×
Alphanumeric Remote Display
Alphanumeric Remote Display
×
Dina-Tel 2 for Full display
Dina-Tel 2 for Full display
×
Wi-Net Modem
Wi-Net Modem
×
P2P Major Functions Remote
P2P Major Functions Remote
×
Mixer Control by Office PC
Mixer Control by Office PC
×
Software For Mixer & Feeding Management
Software For Mixer & Feeding Management
×
Motor Controller Automate Mixer Operation
Motor Controller Automate Mixer Operation
