6000 Series Vertical - TMR Mixers

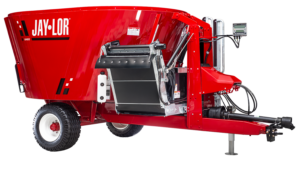

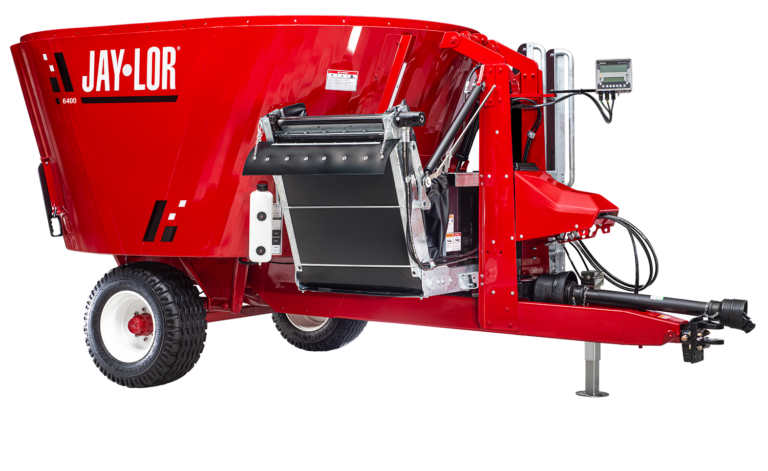

Jaylor 6400 Single Auger TMR Mixer

Specifications

Capacity No Extension: 375ft³ | 10.6m³
Capacity 8" Extension: 410ft³ | 11.6m³
Capacity 12" Extension: 440ft³ | 12.5m³
Capacity 16" Extension: 465ft³ | 13.2m³
Weight: 7900lbs | 3600kg
Height: 93in | 236cm*
Length: 212in | 538cm
Drum Width: 102in | 259cm
Pto Speed: 540 RPM
Minimum Hp: 70 HP
Auger Speed: 41 RPM
Number Of Knives: 8
Auger Flighting Thickness: 5/8in | 16mm
Max Discharge Height: 60in | 152cm**
Conveyor Width: 36in | 91cm
Door Opening Width: 42in | 107cm
Floor Thickness: 5/8in | 16mm
Drum Wall Thickness: 1/4in | 6mm
Standard Tires: 15.0/55-17 26 PLY (2)

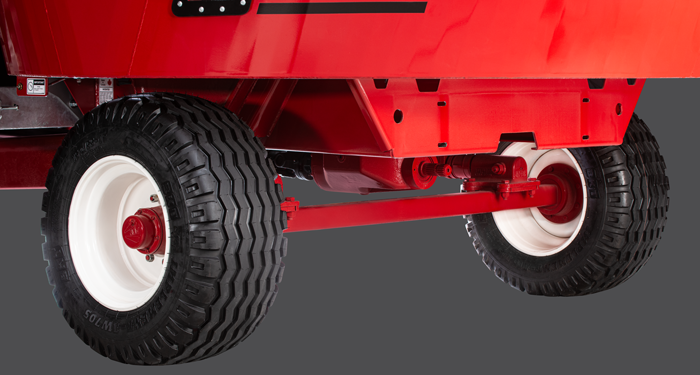

Wheel Assembly: Single Straight Axle

* with optional low-profile tires
** with optional 72" conveyor

Warranty

Industry Leading

Yes, your loader will reach. With low-profile tires, the Jaylor 5400 Single Auger TMR Mixer stands just 93 inches (236 cm) tall, making it easy for smaller skid steers and compact loaders to load feed effortlessly. Built to handle the demands of dairy and beef operations, this low-profile vertical feed mixer efficiently feeds up to 75 dairy cows, 95 beef cattle, or 375 sheep/goats per load per day, depending on your ration. Designed for smooth, consistent TMR processing, the 5400 Mixer ensures even blending with minimal sorting or waste.

Need more capacity? Check out the 5600 Twin Auger TMR mixer – a larger low-profile feed mixer designed for higher-volume operations.
