5275 Trailer

Mini TMR Mixers

5275 Trailer

Specifications

Capacity No Extension
300ft³ | 8.5m³
Capacity 12" Extension
375ft³ | 10.6m³
Weight
6800lbs | 3100kg
Height
83in | 2.1m*
Length
212in | 5.4m
Drum Width
76.5in | 1.9m
Pto Speed
540 RPM
Minimum Hp
45 HP
Auger Speed
41 RPM
Number Of Knives
16
Auger Flighting Thickness
1/2in | 13mm
Max Discharge Height
33in | 84cm
Door Opening Width
25in | 64cm
Floor Thickness
1/2in | 13mm
Drum Wall Thickness
1/4in | 6mm
Standard Tires
10.0/75 – 15.3 18 PLY (2)
Wheel Assembly
Single Straight Axle
Scale System
DG500
  • * lifting lugs protrude an additional 1.5in | 3.8cm above

Warranty

Industry Leading

Our Jaylor does a better job of consistently mixing our combination of hay, corn silage and wet distillers than any other mixer. We love it. It does a fabulous job.

Brandt Willer
Willer & Ekern Farms

With our Jaylor Feed Cart Mixer, I like how I know what I'm feeding with the scale. Before, it was a guessing game. Now, I get a consistent mix and measurements.

David deKleer
deKleer Farm

A mini mixer that can process 4×5 bales. On smaller operations, or when feeding specialty groups, such as weaned calves or dry cows, the Mini Mixer Series fits perfectly. With a Horsepower requirement of only 45HP, the 5275 has the lowest horsepower requirement of any vertical TMR Mixer in its class. We attribute this low horsepower requirement to the unique design of the slide plate on our patented auger.

Standard Features

Patented Square Auger
Mix Viewing Window
Planetary Drive System
Planetary Gearbox
Welded Mixing Chamber
3 Point Weigh System
Heavy Duty Adjustable Cast Hitch
Twin Square Cut Augers
#6 PTO 6 Spline
Restrictor Blades
18 PLY Tires
View All

Optional Features

Plastic Extension

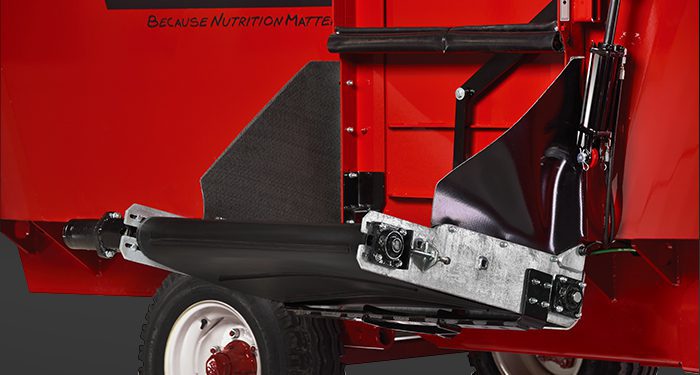

Discharge Conveyor
Safety Chains
STAD 04 PLUS² Indicator Upgrade
WIN SCALE² Indicator Upgrade
TOP SCALE IC Indicator Upgrade
Cab Remote Display
Weight Repeater Remote Display
Alphanumeric Remote Display
Dina-Tel 2 for Full display
Wi-Net Modem
P2P Major Functions Remote
Software For Mixer & Feeding Management
View All

Features

Sloped top Square-Cut Auger
Structurally Reinforced Frame
3-Point Weigh System with DG500 Indicator
Planetary Gearbox
Mix Viewing Window
Central Grease Bank
Tungsten Carbide Coated Knives
Heavy Duty Adjustable Cast Hitch
Dual Restrictor Blades
Ultra-Low Loading Height
